CARBON FILM RESISTORS
CARBON FILM RESISTORS ₹250.00
Back to products
CARBON FILM RESISTORS
CARBON FILM RESISTORS

LED CHIP RESISTOR

₹250.00

Compare
Add to wishlist
Category:
Description
TECHNICAL SPECIFICATION :-

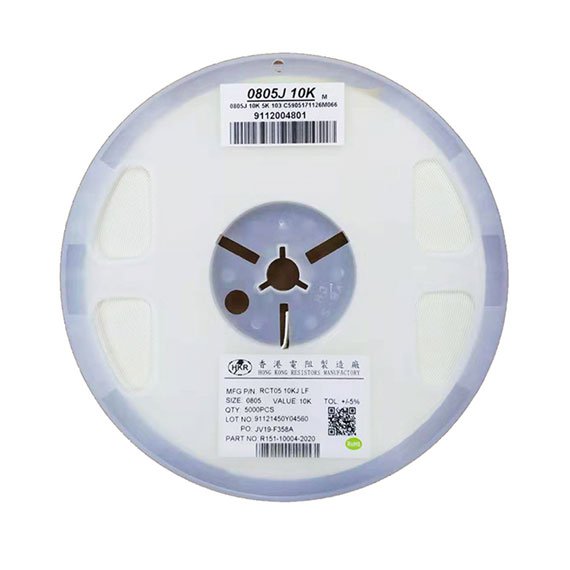

Packing：Tape on reel

Tolerance：±1%, ±5%

Resistance Value Range：1 OHM – 100 MEG OHM

HKR products comply with environmental requirement in accordance with SONY of code no. SS-00259 for not related in 8 harmful materials.

  • Small size and ligtweight with size range per int’l standard
  • Highly stable in auto-placement surface mounting application
  • Compatible with both wave soldering and reflow soldering
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “LED CHIP RESISTOR”
